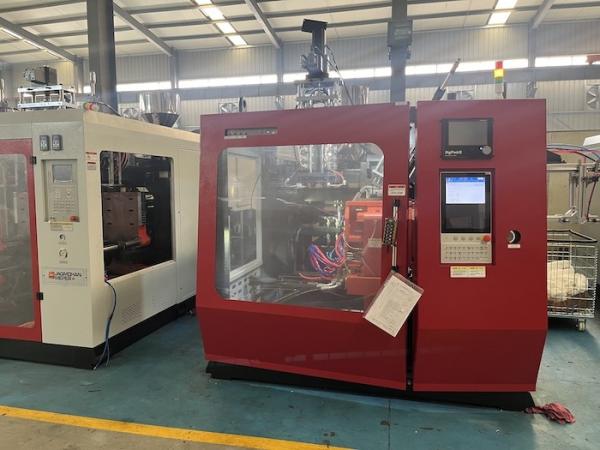

Product Description:
The machine comes with a Double Layer Design that ensures the
bottles produced are of high quality and are durable. The Double
Layer Design is suitable for producing bottles that require a high
level of protection from external factors. The four layers of the
Extrusion Blow Moulder ensure that the bottles produced are of the
highest quality.
The Extrusion Blow Moulder has a name that reflects its
capabilities. The Double Stations Polyethylene Screw 100mm is a
machine that is designed to produce bottles that are of high
quality and are durable. The machine is designed to work
efficiently, ensuring that the production process is fast and
reliable.
The Extrusion Blow Moulder is a machine that is suitable for
producing bottles of various sizes. The machine is designed to work
with different types of materials, including Polyethylene. This
makes it suitable for producing bottles for different industries,
including the cosmetic industry.
The Extrusion Blow Moulder is a machine that is easy to operate. It
comes with a user-friendly interface that allows for easy control
of the production process. The machine is also easy to maintain,
ensuring that it is always in good working condition.
In summary, The Double Stations Polyethylene Screw 100mm Extrusion
Blow Moulder is a top-of-the-line Extrusion Blowing Machine that is
designed for high-quality production of bottles. It is a Tie Bar
type machine that is suitable for producing bottles for the
cosmetic industry, among other things. The machine comes with a
Double Layer Design that ensures the bottles produced are of high
quality and are durable. The four layers of the Extrusion Blow
Moulder ensure that the bottles produced are of the highest
quality. The machine is easy to operate and maintain, ensuring that
it is always in good working condition.
Features:
- Product Name: Extrusion Blow Molding Machine
- Blow Molding Type: Extrusion Blow Molding Machine
- Type: Tie Bar
- Year: NEW
- Layer Design: Double Layer Design
- Automatic: Yes
This Extrusion Blowmolding Machine is perfect for businesses in
need of a reliable and efficient solution for creating plastic
products. With its Tie Bar design and Double Layer Design, it
provides excellent control and precision, while still being easy to
operate. Plus, it's fully automatic, making it even more convenient
for busy businesses. Invest in this Extrusion Blowforming Machine
today and take your business to the next level!
Technical Parameters:
1.2 Major technical parameters
| System | Item | Unit | Basic Parameter |
Basic specifications
| Applicable materials | | PE PP PVC PA… |
| Max product volume | L | 10 |
| Number of heads | SET | 1,2,3,4 |
Machine dimension (LxWxH) | M | 3.7×3×2.5 |
| Machine weight | TON | 8 |
|
Mould clamping system | Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 240-600 |
| Plate stroke | | 360 |
| Max mould sizes(WxH) | MM | 500×360 |
|
Extrusion system
| Screw diameter | MM | 70 |
| Screw slenderness ratio | L/D | 24 |
| Plasticizing ability (HDPE) | KG/H | 90 |
| Screw heating stage/zone | Zone | 3 |
| Screw heating power | KW | 12 |
| Screw fan power | KW | 0.28 |
| Extrusion motor power | KW | 18.5 |
| |
Head | Head heating stage/zone | Zone | 10 |
| Head heating power | KW | 16.5 |
| Max extrusion gate mould diameter | MM | 3 |
|
Energy consumption | Total machine power | KW | 70 |
| Oil motor power | KW | 15 |
| Air pressure | MPA | 0.6-0.8 |
| Average energy consumption | KW | 1.5 |
| Compression air volume | M3/H | 50 |
| Cooling water volume | M3/H | 55.5 |
Applications:
The Extrusion Blowing Machine is suitable for manufacturing a wide
range of bottles, including cosmetic bottles, and is made of HDPE +
HDPE+AD+EVOH+ material. It is a Double Stations Polyethylene Screw
100mm machine with a Tie Bar type and four layers, giving you a
sturdy and durable product.
With a supply ability of 100 sets per month, the Extrusion Blow
Moulder is a versatile machine that can be used in various
scenarios and occasions. It is perfect for small to medium-sized
businesses looking to expand their manufacturing capabilities or
for larger companies looking for a reliable and efficient machine.
The Extrusion Blowing Machine is easy to use and comes with
standard export packaging, including a wooden pallet. You can also
choose to have it packaged in a wooden case(optional). Payment
terms include L/C and T/T.
Overall, the MEPER MP70FS Extrusion Blow Molding Machine is a
reliable and efficient machine that can help you take your
manufacturing capabilities to the next level. Whether you are
looking to manufacture cosmetic bottles or other products, this
machine is perfect for all your manufacturing needs.
Customization:
The Double Stations Polyethylene Screw 100mm makes this Extrusion
Blow Moulder suitable for cosmetic bottles, among other products.
It is a four-layer machine with automatic features that ensure
precision and accuracy. Whether you're looking for a new machine or
an upgrade, the MEPER Extrusion Blow Moulder is a reliable option
that delivers high-quality results.
Order the NEW MEPER Extrusion Blow Moulder today and experience the
benefits of a customizable machine that's designed to meet your
needs.
Packing and Shipping:
Product Packaging:
The Extrusion Blow Molding Machine will be packaged using sturdy
wooden crates and wrapped with protective materials to ensure safe
transportation. The machine parts will be disassembled and
carefully packed to avoid damage during shipping.
Shipping:
Shipping will be arranged by our team to ensure timely and safe
delivery of the Extrusion Blow Molding Machine. We will work with
reputable shipping companies to handle the transportation and
delivery of the product to your desired location.
