Product Description:
The Extrusion Blow Moulding process is a manufacturing process used
to create hollow plastic parts. The process involves melting
plastic material and extruding it into a hollow tube. The tube is
then inflated to form the shape of the finished product. This
process is ideal for producing plastic bottles, containers, and
other similar products.
The Extrusion Blow Molding Machine is a new product that is
designed with the latest technology to ensure that it meets the
needs of modern manufacturing. This machine is designed to produce
plastic bottles with a four-layer design. The layers are made up of
HDPE, HDPE, AD, and EVOH. This layer design ensures that the
bottles produced are of high quality and are durable.
The Extrusion Blow Molding Machine is designed with a double-layer
design. This design ensures that the bottles produced are of high
quality and are durable. The double-layer design also ensures that
the bottles are resistant to damage and are able to withstand the
stresses of transportation and storage.
The Extrusion Blow Molding Machine is a versatile machine that can
be used to produce a wide range of plastic bottles. The machine is
designed to be easy to use and can be operated by anyone with
minimal training. The machine is also designed to be easy to
maintain, which makes it ideal for use in manufacturing
environments.
In summary, the Extrusion Blow Molding Machine is a must-have
machine for any manufacturer looking to produce high-quality
plastic bottles. The machine is designed to produce plastic bottles
using the Extrusion Blow Moulding process. The machine is designed
with a four-layer design that ensures that the bottles produced are
of high quality and are durable. The machine is also designed with
a double-layer design that ensures that the bottles produced are
resistant to damage and can withstand the stresses of
transportation and storage.
Features:
- Product Name: Extrusion Blow Molding Machine
- Automatic: Yes
- Blow Molding Type: Extrusion Blow Molding Machine
- Suitable Bottle: Cosmetic Bottle Ect
- Material: HDPE + HDPE+AD+EVOH+
- Layer Design: Double Layer Design
This Extrusion Blow Molding Machine is also known as Extrusion Blow
Moulder or Extrusion Blowmolding Machine.
Technical Parameters:
1.2 Major technical parameters
| System | Item | Unit | Basic Parameter |
Basic specifications
| Applicable materials | | PE PP PVC PA… |
| Max product volume | L | 10 |
| Number of heads | SET | 1,2,3,4 |
Machine dimension (LxWxH) | M | 3.7×3×2.5 |
| Machine weight | TON | 8 |
|
Mould clamping system | Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 240-600 |
| Plate stroke | | 360 |
| Max mould sizes(WxH) | MM | 500×360 |
|
Extrusion system
| Screw diameter | MM | 70 |
| Screw slenderness ratio | L/D | 24 |
| Plasticizing ability (HDPE) | KG/H | 90 |
| Screw heating stage/zone | Zone | 3 |
| Screw heating power | KW | 12 |
| Screw fan power | KW | 0.28 |
| Extrusion motor power | KW | 18.5 |
| |
Head | Head heating stage/zone | Zone | 10 |
| Head heating power | KW | 16.5 |
| Max extrusion gate mould diameter | MM | 3 |
|
Energy consumption | Total machine power | KW | 70 |
| Oil motor power | KW | 15 |
| Air pressure | MPA | 0.6-0.8 |
| Average energy consumption | KW | 1.5 |
| Compression air volume | M3/H | 50 |
| Cooling water volume | M3/H | 55.5 |
Applications:

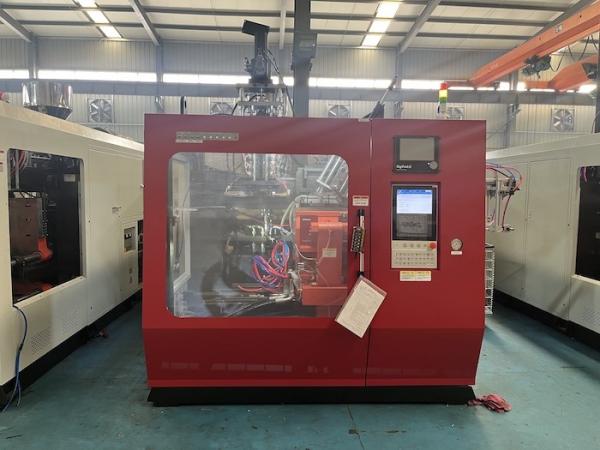

The MP70FS Extrusion Blow Moulding Machine can be used in a variety
of scenarios. It is ideal for manufacturing plastic bottles,
containers, and other hollow plastic products. The machine is
perfect for small to medium-scale production lines, and can be used
in industries such as food and beverage, cosmetics, and household
products. The machine's fast cycle times and high accuracy make it
suitable for high-volume production runs.
The Extrusion Blow Moulding Machine is manufactured in China and is
CE/ISO9001:2008 certified. The minimum order quantity for the
MP70FS is 1 set, and the price is negotiable. The machine is
packaged in a standard export package, with the option of a wooden
case for added protection. The delivery time for the machine is
25-35 work days, with payment terms of L/C and T/T. The machine has
a supply ability of 100 sets per month.
The MP70FS Extrusion Blow Moulder is equipped with a 100mm screw,
making it perfect for polyethylene products. The machine is a new
model with advanced features and high precision. It is a double
station machine, allowing for increased productivity and
efficiency. The machine is fully automatic, making it easy to
operate and maintain.
The Extrusion Blowforming Machine is perfect for various
application occasions. It is ideal for manufacturing plastic
bottles, containers, and other hollow plastic products. The machine
is perfect for small to medium-scale production lines, and can be
used in industries such as food and beverage, cosmetics, and
household products. The machine's fast cycle times and high
accuracy make it suitable for high-volume production runs.
Customization:
The Extrusion Blow Molding Machine features a Double Stations
Polyethylene Screw 100mm and a Tie Bar type. It also has a Double
Layer Design and a Four Layers layer design. This machine is
perfect for Extrusion Blowing Machine, Extrusion Blowforming
Machine, and Extrusion Blowforming Machine applications.
Packing and Shipping:
Product Packaging:
The Extrusion Blow Molding Machine product will be securely
packaged in a wooden crate to ensure safe transport and delivery.
Shipping:
Shipping will be arranged by our logistics team and will be
delivered to the customer's specified location. The shipping cost
will be calculated based on the delivery location and weight of the
product. Please allow 2-3 weeks for delivery.
