Product Description:
The MP plastic blow molding machine is designed to process plastic
hollow products that have a high molecule content. This machine can
create a wide range of hollow products that vary in size from 5
milliliters to 100 liters. These products include bottles, pots,
jars, barrels, toys, tool boxes, bed boards, desk boards, chairs,
and auto parts, among others.
The blow molding machine is capable of processing a variety of
materials such as PE, PP, PVC, PA, PC, PS, and EVA. It offers a
perfect process, resulting in high-quality products that are
suitable for different applications.
Technical Parameters:
| System | Item | Unit | Basic Parameter |
Basic specifications
| Applicable materials | | PE PP PVC PA… |
| Max product volume | L | 10 |
| Number of heads | SET | 1,2,3,4 |
Machine dimension (LxWxH) | M | 3.7×3×2.5 |
| Machine weight | TON | 8 |
|
Mould clamping system | Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 240-600 |
| Plate stroke | | 360 |
| Max mould sizes(WxH) | MM | 500×360 |
|
Extrusion system
| Screw diameter | MM | 70 |
| Screw slenderness ratio | L/D | 24 |
| Plasticizing ability (HDPE) | KG/H | 90 |
| Screw heating stage/zone | Zone | 3 |
| Screw heating power | KW | 12 |
| Screw fan power | KW | 0.28 |
| Extrusion motor power | KW | 18.5 |
| |
Head
| Head heating stage/zone | Zone | 10 |
| Head heating power | KW | 16.5 |
| Max extrusion gate mould diameter | MM | 3 |
|
Energy consumption | Total machine power | KW | 70 |
| Oil motor power | KW | 15 |
| Air pressure | MPA | 0.6-0.8 |
| Average energy consumption | KW | 1.5 |
| Compression air volume | M3/H | 50 |
| Cooling water volume | M3/H | 55.5 |
Applications:

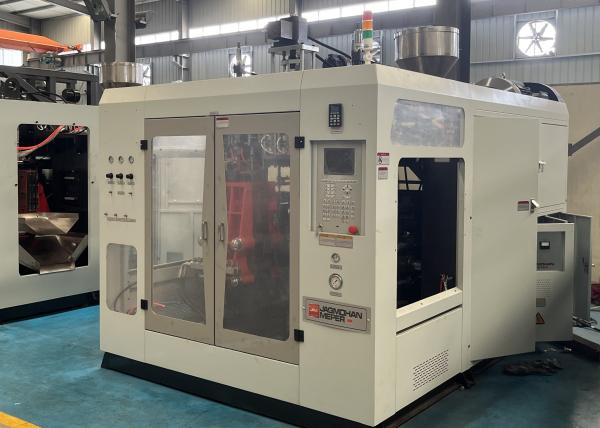

The MEPER mp70fs Extrusion Blow Molding Machine is designed for
high-performance manufacturing of plastic bottles, containers,
jars, and other hollow products. With a mould clamping force of
150kn, it is capable of producing a wide range of products with
different shapes and sizes. The machine has a plasticizing ability
of 90KG/H for HDPE and is compatible with other materials such as
PE, PP, PVC, and PA. It has a screw diameter of 70mm and a head
heating stage/zone of 10 zones.
The Extrusion Blow Molding Machine is suitable for a variety of
applications, including the production of bottles for beverages,
cosmetics, and pharmaceuticals. It is also ideal for the
manufacturing of containers for household cleaning products, food,
and chemicals. The machine is perfect for small to medium-sized
businesses looking to expand their product range and production
capacity.
Whether you are a startup or an established manufacturer, the MEPER
Extrusion Blow Molding Machine is an excellent investment. It
offers high-quality and reliable performance, making it perfect for
the production of a wide range of hollow products. With its
advanced features and compatibility with various materials, it can
help you to achieve your manufacturing goals efficiently and
effectively.
Support and Services:
Our Extrusion Blow Molding Machines are designed to provide
excellent performance and reliability. We offer a range of
technical support and services to ensure that your machine operates
at optimal levels:
- Installation and commissioning
- Training for operators and maintenance personnel
- Preventative maintenance programs to minimize downtime
- Remote support and troubleshooting
- Repair and replacement of parts and components
- Upgrades and retrofitting to improve machine performance and
efficiency
Our team of experienced technicians and engineers are available to
provide support and services to help you maximize the productivity
and profitability of your Extrusion Blow Molding Machine. Contact
us for more information.
Packing and Shipping:
Product Packaging:
The Extrusion Blow Molding Machine will be carefully packed in a
sturdy wooden crate to ensure safe shipment. The machine will be
secured in place with brackets and cushioning materials to prevent
any damage during transit.
Shipping:
The Extrusion Blow Molding Machine will be shipped via a reliable
freight carrier. The shipping cost will be calculated based on the
distance and weight of the machine, and the delivery time will
depend on the location of the buyer. The buyer will be responsible
for any customs duties or taxes that may apply.
