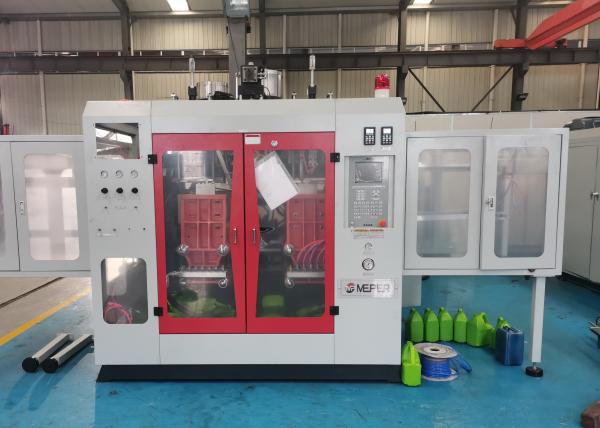

Agricultural Chemical 1L Plastic Bottle Blow Molding Machine MP80FD For Hdpe

Ask Lasest Price
Brand Name :	MEPER
Model Number :	MP80FD
Certification :	CE/ISO9001:2008
Price :	Price negotiation
Payment Terms :	L/C, T/T
Supply Ability :	100 sets per month
Delivery Time :	25-35 work days

Add to Cart

Product Details
Company Profile

Agricultural Chemical 1L Plastic Bottle Blow Molding Machine MP80FD For Hdpe

two heads Blow Molding machines M80FD

Introduction:
MP80FD is Adopt parallel carriage moving, with automatic lubrication system. The movements are stable and easy to operate, two layer die head is optional.This series machine is widely used in food packing,pharmacy and cosmetic area.

CONFIGURATION OF EXTRUSION BLOW MOLDING MACHINE
CONFIGURATION OF EXTRUSION BLOW MOLDING MACHINE
COMPONENT	BRAND	ORIGIN
electric system
controller(computer)	TECHMATION	TAIWAN
interface	TECHMATION	TAIWAN
contactor	LS	KOREA
linear transducer	NOVETECHINIC	GERMANY
stroke switch	SCHNEIDER	GERMANY
inverter	DELTA	TAIWAN
servo system	TECHMATION	TAIWAN
extruder motor	ZHONGDA	CHINA
screw and barrel	JINGXIN	CHINA
hydraulic system
oil pump	VICKERS	USA
hydraulic valve	VICKERS	USA
proportional valve	HNC	TAIWAN
seal ring	NOK	JAPAN
pneumatic system
air cylinder	ARK	KOREA
pneumatic valve	REXROTH	GERMANY

Parameters	MP80FD
Material	PE PP PVC PA…
Max container capacity	10L
Number of die	1,2,3,4,6
Machine Dimension(LxWxH)	3.3x5.5x2.8m
Total weight	12ton
Clamping force	150kN
Platen openning stokes	240-620mm
Toggle stokes	600mm
Max mould size(WxH)	550x430mm
Screw diameter	80mm
Screw L/D ratio	24 L/D
(HDPE) Plasticizing capacity	108kg/h
Screw heating zone	4 zone
Screw heating power	15.6kw
Screw fan power	0.14kw
Extrusion motor power	30kw
Die head heating zone	8 zone
Power of die heating	10.3kw
Total power of machine	92kw
Power of oil pump motor	31kw
Air pressure	0.6-0.8 Mpa
Average energy consumption	61kw
Consumption compression air	1.2m³/min
Consumption cooling water	80L/min
