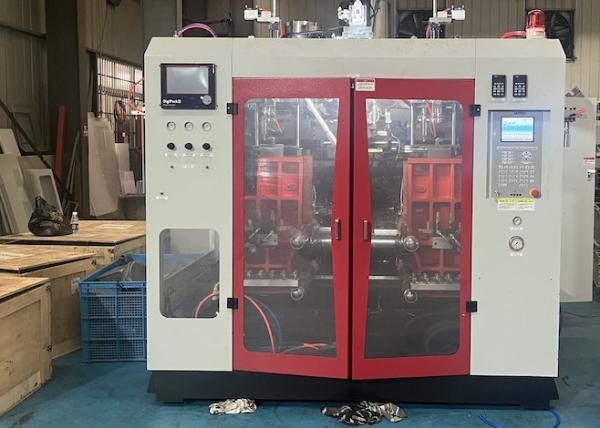

    MP 80D 150KN 80mm Blowing Machine For Plastic Bottle

    Ask Lasest Price
    Brand Name : MEPER
    Model Number : MP80D
    Certification : CE/ISO9001:2008
    Price : negotiable
    Delivery Time : 25-35 work days
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets per month
    • Product Details
    • Company Profile

    MP 80D 150KN 80mm Blowing Machine For Plastic Bottle

    Product Description:

    MP Plastic Blow Molding Machine is designed for processing various plastic hollow products made from high-molecular materials. This machine is capable of producing hollow products ranging from 5 milliliters up to 100 liters. The wide range of products that can be manufactured using this machine includes bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others. It not only accommodates different materials like PE, PP, PVC, PA, PC, PS, and EVA but also ensures a flawless production process.

    Features:

    a) Extruding device adopts variable frequency motor which can satisfy the requirements of rotation change of screw during blowing process. Screw with big slenderness ratio can be used to process many kinds of materials and has strong plasticizing ability, high production and low energy consumption. The barrel adopts resistance heater which is controlled by computer and heats quickly, stably and equably.

    b) By installing different head in combined extrusion system between two extrusion machines, they can blow products with view strip line or double layers.

    c) Mould clamping device adopts vertical compression, three pilot post, big beam arm and linear guider, cylinder spindle and double working position. Mould moves fast and stably.

    d) Improved design of hydraulic oil loop. Power saving, rapid and stable.

    e) Installation and maintenance of hydraulic elements are convenient. Equipped with removable and mobilizable oil tank.

    f) The whole machine is controlled by computer. The hydraulic system adopts double proportional control. This machine has fault automatic alarm, reliable operation, high automation and data memory of 40 sets of moulds.

    g) Three operation modes-“Manual”, “Semi Auto”, “Full Auto”, are allowed to select.

    h) Safety door adopts electric and mechanical safety devices (no mould closing happens when safety door opens) which make operation safe and reliable.

    i) This machine has two blowing functions of straight cutting and oblique cutting.

    Technical Parameters:

    1.2 Major technical parameters

    System Item Unit Basic Parameter

    Basic specifications

    Applicable materialsPE PP PVC PA…
    Max product volumeL10
    Number of headsSET1,2,3,4
    Machine dimension (LxWxH)M4x2.3x2.5
    Machine weightTON8.2

    Mould clamping system

    Mould clamping forceKN150
    Platen opening strokesMM220-620
    Plate strokeMM540
    Max mould sizes(WxH)MM520x460

    Extrusion system

    Screw diameterMM80
    Screw slenderness ratioL/D24
    Plasticizing ability (HDPE)KG/H90
    Screw heating stage/zoneZone4
    Screw heating powerKW15.85
    Screw fan powerKW0.28
    Extrusion motor powerKW30

    Head

    Head heating stage/zoneZone3
    Head heating powerKW10

    Energy consumption

    Total machine powerKW80
    Oil motor powerKW18.7
    Air pressureMPA0.6-0.8
    Compression air volumeM3/min1.5
    Cooling water volumeL/min40

    Applications:

    When considering the versatile Extrusion Molding Machine from MEPER, model MP80D, there are numerous application occasions and scenarios where this Molding Extruder Equipment can be effectively utilized. Originating from China and boasting CE/ISO9001:2008 certification, this machine is a reliable choice for various industries.

    The Extrusion Molding Machine is ideal for use in the production of a wide range of products made from materials such as PE, PP, PVC, and PA. Whether you are manufacturing pipes, tubes, profiles, or other plastic products, this machine is designed to meet your needs. With a plasticizing ability of 90 for HDPE and a screw diameter of 80mm, it offers efficient and consistent performance.

    With the flexibility to operate with 1, 2, 3, or 4 heads, the Extrusion Molding Machine allows for customization based on specific production requirements. The screw slenderness ratio of 24 further enhances the machine's capabilities, ensuring precision in the extrusion process.

    Businesses looking to invest in this equipment will benefit from its negotiable price, with a minimum order quantity of just 1 set. The standard packaging and delivery time of 25-35 work days make it convenient to receive the machine promptly. Payment terms including L/C and T/T offer flexibility for buyers.

    With a supply ability of 100 sets per month, the MEPER Extrusion Molding Machine is suitable for both small-scale operations and large-scale production facilities. Its reliable performance, robust construction, and compatibility with various materials make it a valuable asset for businesses in the plastic industry.
