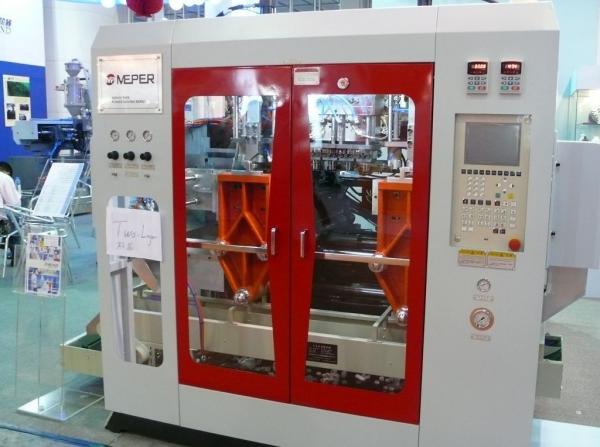

Double station extrusion blow moulding machine MP70D-2 for
Disinfectant Products
| PARAMETERS | MP70D-2 φ70 |
| SPECIFICATIONS | |
| material | PP.PE |
| MAX container capacity L | 1 |
| number of die Set | 2 |
| machine dimension(L×W×H) M | 3.6×2.2×2.36 |
| total weight Ton | 5.5 |
| CLAMPING | |
| clamping force KN | 90 |
| platen opening strokes mm | 180-480 |
| toggle stroke mm | 300 |
| Max mould size(W×H) mm | 430×370 |
| EXTRUDER UNIT | |
| screw diameter mm | 70 |
| screw L/D ratio L/D | 24 |
| (HDPE)plasticizing capacity kg/h | 75 |
| screw heating zone zone | 3 |
| screw heating power kw | 12.7 |
| fan power kw | 0.28 |
| extruder driving power kw | 18.5 |
| DIE HEAD | |
| die head heating zone zone | 6 |
| power of die heating kw | 10 |
| ENERGY-CONSUMPTION | |
| power of the electric motor kw | 9.5 |
| air pressure Mpa | 0.6-0.8 |
| total power of machine kw | 50.98 |
| average energy consumption kw | 25 |
| compression air consumption m3/min | 1 |
| cooling water consumption L/minv | 30 |
Brief introduction
MP70D Adopt hydraulic system drive,linear transducer movement for
carriage up and down,fully automatic lubrication system with
self-detector function.This model is popular use for small products
below 5L.
Advantage:
1. Most important for a good EBM machine is the action system and
the extrusion system.
we'r using powerful hydraulic system design with imported valve and
pump for stable action
Adopt China famous brand Gearbox along with Delta extrusion motor
,make sure machine runs continiously,long life
2. Heavy and stong structure,make sure machine works more faster
and stable.
3. Special protection for the machine and people
Sensor in the operating door: if anybody enter the machine,the
electricity conneced with the machine will automatic cut down.
Temperature interlock system:When the material inside the barrel is
not reaching the setting temperature,the extrusion motor can never
start.that will help the screw and head of the machine.
4. Special care for different countries.
we offer some special design for different countries,in order to
matching best performance.
5. Easy die head dis-assemble and assemble
6. Defleshing function included
