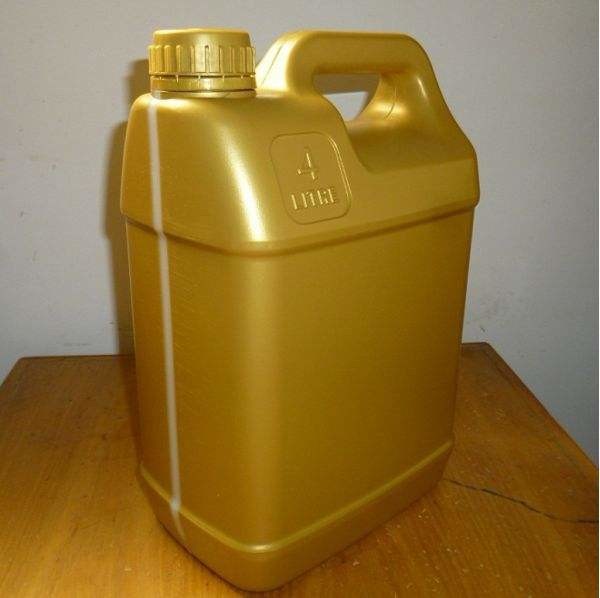

Customized extrusion blow molding machine single station with IML
system for palm oil bottle
Model number: MP80FS&IML
Brief introduction:
Hydraulic system design extusion blow molding machine MP80 is
suitable for Producing Medium Size Bottles up to 10L of Various
Materials, and Equipped with Single Die Head, Double Die Heads,
Three Die Heads, Four Die Heads,Six Die heads.
Adopt four leaders point support structure, it can accept heavy
moulds. With parison control system ,it is especially to make
bottles below 10 liter ,like toys, auto parts ....
Advantage:
1. Most important for a good EBM machine is the action system and
the extrusion system.
we'r using powerful hydraulic system design with imported valve and
pump for stable action
Adopt China famous brand Gearbox along with Delta extrusion motor
,make sure machine runs continiously,long life.
2. Heavy and stong structure,make sure machine works more faster
and stable.
3. Special protection for the machine and people
Sensor in the operating door: if anybody enter the machine,the
electricity conneced with the machine will automatic cut down.
Temperature interlock system:When the material inside the barrel is
not reaching the setting temperature,the extrusion motor can never
start.that will help the screw and head of the machine.
4. Special care for different countries.
we offer some special design for different countries,in order to
matching best performance.
5. Easy die head dis-assemble and assemble
6. Defleshing function included
Machine specification:
| Parameters | MP80FS |
| Material | PE PP PVC PA… |
| Max container capacity | 10L |
| Number of die | 1,2,3,4,6 |
| Machine Dimension(LxWxH) | 3.7x4.7x2.9m |
| Total weight | 10.5ton |
| Clamping force | 200kN |
| Platen openning stokes | 240-560mm |
| Toggle stokes | 800mm |
| Max mould size(WxH) | 750x420mm |
| Screw diameter | 80mm |
| Screw L/D ratio | 24 L/D |
| (HDPE) Plasticizing capacity | 108kg/h |
| Screw heating zone | 4 zone |
| Screw heating power | 15.6kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 30kw |
| Die head heating zone | 12 zone |
| Power of die heating | 17kw |
| Total power of machine | 89kw |
| Power of oil pump motor | 31kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 60kw |
| Consumption compression air | 1.5m³/min |
| Consumption cooling water | 60L/min |
Machine specification:
Defleshing system type:Push on top and bottom with air cooling
system.
