Multi-layer Multi-cavity Extrusion Blow Moulding MP70FS-4 IML In
mold labeling for food packing bottle
Introduction:

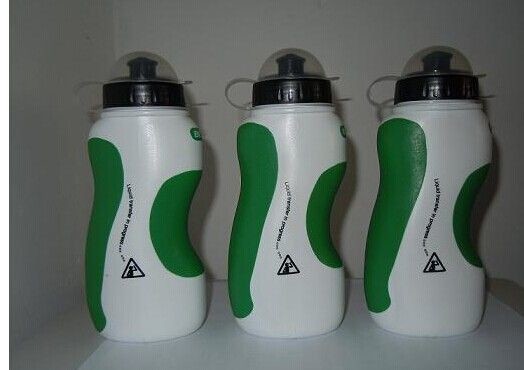

MP70FS IML is specifically designed for making bottles from 600ml
up to maximum 4L. It is hydraulic driven with accrate eletrical
control system. MP70FS IML has single stations to increase the
production efficiency. Also, it has variety of choice of die heads.
With more than 10 years of success in the market, MP70FS IML is
updated to be one of the most reliable and popular model in the
world.
Advantages:
EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER
TECHNOLOGY
Adopting with latest die head design, MEPER focuses on providing
high quality and high precision self-manufactured extrusion die
heads for customers.
CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY
All MEPER machines is equipped in standard with easy operational
TECHMATION control system or optional with B&R control system.
MOOG Parison Control is also optional based on different
requirements.
CLAMPING SYSTEM: HIGHLY DEVELOPED TOGGLE CLAMPING SYSTEM
MP-F Toggle series employs direct-acting clamping system
transferring the forces directly to the middle of both of the
platens. And it adopts high precision linear guides to provide
accurate platen and station movements.
ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM
MP70FS IML is equipped with high standard of energy saving driving
systems. All extrusion and hyraulic motors are in IE3/4 energy
level. Also, servo energy saving feature can be easily applied.
| MP70FS |
| Single station blow molder with horizontal linear mould shuttle |
| Length: | 3600mm | | |
| Width: | 2200mm | | |
| Height | 2360mm | | |
| | | | |
| Key Data | | MP70FS |  |
| | mm |
| Linear mould stroke | A | 520 |
| Mould Width | B | 500 |
| Mould Length | C | 400 |
| Mould Thickness | D | 250 |
| Opening Stroke | E | 350 |
| | |
| Platen daylight | D+E | 600 |
| Clamping Force | | 75kN | | |
| Dry Cycle | | 7 sec. | | |
| Centre Distance | 1x2 fold | 160 | | |
| 1x3 fold | 120 | | |
| 1x4 fold | 100 | | |
| 1x6 fold | 60 | | |
| | | | |
| Extruder | | φ70 | φ75 | φ80 |
| Screw Speed | r/min | 0~65 | 0~65 | 0~65 |
| Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| | | | |
| Energy Requirements | | | | |
| Extruder Inverter Power | kW | 18.5 | 22 | 30 |
| Extruder Moter Power | kW | 18.5 | 22 | 30 |
| Srew Heating Power | kW | 12.7 | 14.4 | 15.85 |
| Fan Power | kW | 0.14X2 | 0.14X2 | 0.14X2 |
| Oil pump Motor Power | kW | 15 | 15 | 15 |
| Total Power of Machine | kW | 49.14 | 54.34 | 63.79 |
| Air Requirement approx | m3/min | 1.2 | 1.2 | 1.2 |
| Air Working Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| | | | |
| Cooling Requirements | | | | |
| Consumption Cooling Water | L/min | 40 | 40 | 40 |
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
