Fully Automatic Extrusion Blow Moulding Machine MP80FS with IML

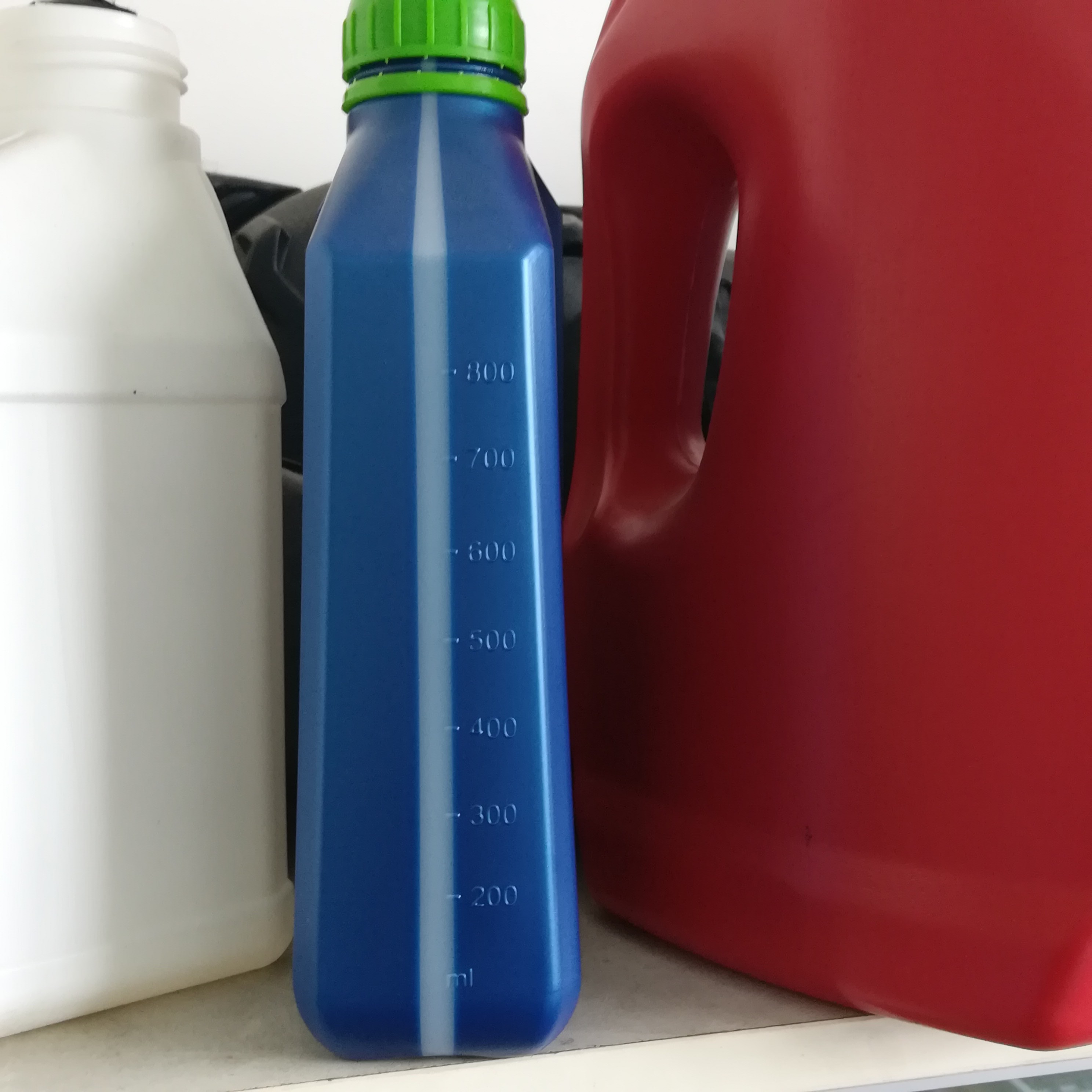

machine In mold labeling for detergent bottle
Introduction:
MP80FS IML is specifically designed for making bottles from 5ml up
to maximum 10L. It is hydraulic driven with accrate eletrical
control system. MP80FS IML has double stations to increase the
production efficiency. Also, it has variety of choice of die heads.
With more than 10 years of success in the market, MP80FS IML is
updated to be one of the most reliable and popular model in the
world.
Advantages:
EXTRUSION DIE HEAD: HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER
TECHNOLOGY
Adopting with latest die head design, MEPER focuses on providing
high quality and high precision self-manufactured extrusion die
heads for customers.
CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY
All MEPER machines is equipped in standard with easy operational
TECHMATION control system or optional with B&R control system.
MOOG Parison Control is also optional based on different
requirements.
CLAMPING SYSTEM: HIGHLY DEVELOPED TOGGLE CLAMPING SYSTEM
MP-F Toggle series employs direct-acting clamping system
transferring the forces directly to the middle of both of the
platens. And it adopts high precision linear guides to provide
accurate platen and station movements.
ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM
MP80FS is equipped with high standard of energy saving driving
systems. All extrusion and hyraulic motors are in IE3/4 energy
level. Also, servo energy saving feature can be easily applied.
| Parameters | MP80FS |
| Material | PE PP PVC PA… |
| Max container capacity | 10L |
| Number of die | 1,2,3,4,6 |
| Machine Dimension(LxWxH) | 3.7x4.7x2.9m |
| Total weight | 10.5ton |
| Clamping force | 200kN |
| Platen openning stokes | 240-560mm |
| Toggle stokes | 800mm |
| Max mould size(WxH) | 750x420mm |
| Screw diameter | 80mm |
| Screw L/D ratio | 24 L/D |
| (HDPE) Plasticizing capacity | 108kg/h |
| Screw heating zone | 4 zone |
| Screw heating power | 15.6kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 30kw |
| Die head heating zone | 12 zone |
| Power of die heating | 17kw |
| Total power of machine | 89kw |
| Power of oil pump motor | 31kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 60kw |
| Consumption compression air | 1.5m³/min |
| Consumption cooling water | 60L/min |
