Double Station Plastic Bottle Blow Molding Machine MP70D-1 For Garden Pot

Ask Lasest Price
Brand Name :	MEPER
Model Number :	MP70D-1
Certification :	CE/ISO9001:2008
Price :	Price negotiation
Payment Terms :	L/C, T/T
Supply Ability :	100 sets per month
Delivery Time :	25-35 work days

Add to Cart

Product Details
Company Profile

Double Station Plastic Bottle Blow Molding Machine MP70D-1 For Garden Pot

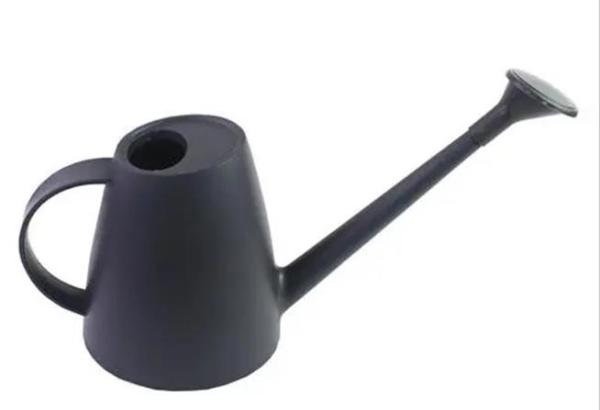

Double Station Plastic Bottle Blow Molding Machine MP70D-1 For Plastic Garden Pot

Introduction:
MP70D is specifically designed for making bottles from 50ml up to maximum 5L. It is hydraulic driven with accrate eletrical control system. MP70D has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP70D is updated to be one of the most reliable and popular model in the world.

MP70D Double station blow molder with horizontal linear mould shuttle
	Length:	3600mm
	Width:	2200mm
	Height	2360mm

Key Data		MP70D
		mm
Linear mould stroke	A	450
Mould Width	B	430
Mould Length	C	350
Mould Thickness	D	190
Opening Stroke	E	290

Platen daylight	D+E	480
Clamping Force		75kN
Dry Cycle		7 sec.
Centre Distance	2x2 fold	160
	2x3 fold	120
	2x4 fold	100
	2x6 fold	60

Extruder		φ70	φ75	φ80
Screw Speed	r/min	0~65	0~65	0~65
Screw Diameter	mm	70	75	80
Screw L/D Ratio	L/D	24	24	24

Energy Requirements
Extruder Inverter Power	kW	18.5	22	30
Extruder Moter Power	kW	18.5	22	30
Srew Heating Power	kW	12.7	14.4	15.85
Fan Power	kW	0.14X2	0.14X2	0.14X2
Oil pump Motor Power	kW	9.5	9.5	9.5
Total Power of Machine	kW	49.14	54.34	63.79
Air Requirement approx	m3/min	1.2	1.2	1.2
Air Working Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8

Cooling Requirements
Consumption Cooling Water	L/min	40	40	40

Extrusion device
The function of extrusion device is to plasticize plastic evenly and to delivery molten materials to head with proper pressure and speed.
It is mainly made up of screw, barrel,hopper, motor, gear box and cooling fan.
The rotation of screw is driven by motor & decelerator and adjusted by frequency changer which can satisfy the requirements of rotation change of screw during blowing process.
