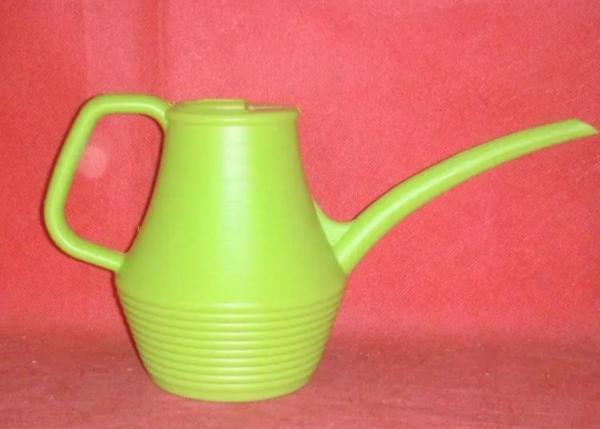

High Speed Plastic Bottle Blow Molding Machine MP70D-1 For Plastic
Water Pot
Introduction:
MP70D is specifically designed for making bottles from 50ml up to
maximum 5L. It is hydraulic driven with accrate eletrical control
system. MP70D has double stations to increase the production
efficiency. Also, it has variety of choice of die heads. With more
than 10 years of success in the market, MP70D is updated to be one
of the most reliable and popular model in the world.
| MP70D Double station blow molder with horizontal linear mould
shuttle |
| Length: | 3600mm |
|
| Width: | 2200mm |
| Height | 2360mm |
| | |
| Key Data | | MP70D |
| | mm |
| Linear mould stroke | A | 450 |
| Mould Width | B | 430 |
| Mould Length | C | 350 |
| Mould Thickness | D | 190 |
| Opening Stroke | E | 290 |
| | | | |
| Platen daylight | D+E | 480 | | |
| Clamping Force | | 75kN | | |
| Dry Cycle | | 7 sec. | | |
| Centre Distance | 2x2 fold | 160 | | |
| 2x3 fold | 120 | | |
| 2x4 fold | 100 | | |
| 2x6 fold | 60 | | |
| | | | |
| Extruder | | φ70 | φ75 | φ80 |
| Screw Speed | r/min | 0~65 | 0~65 | 0~65 |
| Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| | | | |
| Energy Requirements | | | | |
| Extruder Inverter Power | kW | 18.5 | 22 | 30 |
| Extruder Moter Power | kW | 18.5 | 22 | 30 |
| Srew Heating Power | kW | 12.7 | 14.4 | 15.85 |
| Fan Power | kW | 0.14X2 | 0.14X2 | 0.14X2 |
| Oil pump Motor Power | kW | 9.5 | 9.5 | 9.5 |
| Total Power of Machine | kW | 49.14 | 54.34 | 63.79 |
| Air Requirement approx | m3/min | 1.2 | 1.2 | 1.2 |
| Air Working Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| | | | |
| Cooling Requirements | | | | |
| Consumption Cooling Water | L/min | 40 | 40 | 40 |
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
Adjusting of mould
After rough installation of mould, precise adjusting should be
conducted. Steps are as follow:
1) Run the machine with Manual mode. Let mould rack shake up and
down several times and stop at rack end point. Close mould several
times and watch whether head central line and chamber central line
are in parallel and superposition.
2) If two central lines do not match. After closing mould manually,
loose screw fixing mould slightly or move mould left and right.
During moving mould, it is allowable to use an iron hammer to knock
on mould with a wood block ward. When head central line and chamber
central line are in parallel and superposition, lock screw to fix
mould.
