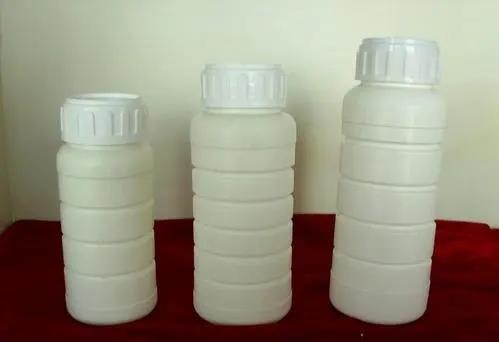

3 Layer High Speed Extrusion Automatic Blow Moulding Machine IML
For 250Ml-1L Pesticide Bottle
Introduction:
MP90FS IML is specifically designed for making bottles from 600ml
up to maximum 10L. It is hydraulic driven with accrate eletrical
control system. MP90FS IML has single stations to increase the
production efficiency. Also, it has variety of choice of die heads.
With more than 10 years of success in the market, MP70FS IML is
updated to be one of the most reliable and popular model in the
world.
Control system( pneumatic,hydraulic and electric)
Control system, “neural center” of this machine, controls and
adjusts time, position, pressure, temperature, speed and rotation
effectively through mastering all procedure action.
Pneumatic system
The action of cutter, blow pin blowing and head blowing is achieved
by pneumatic control. As to the action process and principle of
pneumatic system, please refer to principle figure of pneumatic
system and function introduction
| Parameters | MP90FS |
| Material | PE PP PVC PA… |
| Max container capacity | 10L |
| Number of die | 1,2,3,4,6,8 |
| Machine Dimension(LxWxH) | 5x5.9x3.1m |
| Total weight | 12ton |
| Clamping force | 350kN |
| Platen openning stokes | 240-560mm |
| Toggle stokes | 1150mm |
| Max mould size(WxH) | 1100x430mm |
| Screw diameter | 90mm |
| Screw L/D ratio | 24 L/D |
| (HDPE) Plasticizing capacity | 150kg/h |
| Screw heating zone | 4 zone |
| Screw heating power | 16.5kw |
| Screw fan power | 0.14kw |
| Extrusion motor power | 45kw |
| Die head heating zone | 16 zone |
| Power of die heating | 21kw |
| Total power of machine | 160kw |
| Power of oil pump motor | 31kw |
| Air pressure | 0.6-0.8 Mpa |
| Average energy consumption | 80kw |
| Consumption compression air | 1.5m³/min |
| Consumption cooling water | 150L/min |
Hydraulic system
Mould opening, closing, rack placing, pen inserting and lifting of
this machine are achieved by hydraulic control. As to working
process and action principle of hydraulic system, please refer to
principle figure of hydraulic system(see Figure1.4) and function
introduction.
1. System structure: It is made up of oil pump motor, oil pump,
valve plate, oil valve, cooler, oil tank and oil cylinder.
