High Speed Plastic Bottle Blow Molding Machine MP70D-1 For Plastic

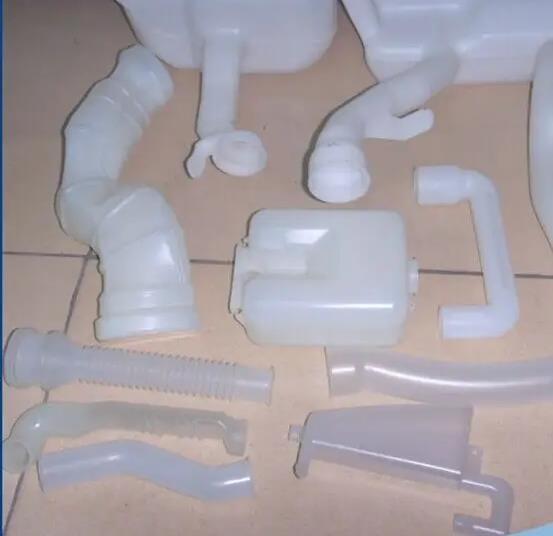

Special Shaped Parts
Introduction:
MP70D is specifically designed for making bottles from 50ml up to
maximum 5L. It is hydraulic driven with accrate eletrical control
system. MP70D has double stations to increase the production
efficiency. Also, it has variety of choice of die heads. With more
than 10 years of success in the market, MP70D is updated to be one
of the most reliable and popular model in the world.
Features
1) Mould clamping device adopts vertical compression, three pilot
post, big beam arm and linear guider, cylinder spindle and double
working position. Mould moves fast and stably.
2) Improved design of hydraulic oil loop . Power saving, rapid and
stable.
3) Installation and maintenance of hydraulic elements are
convenient. Equipped with removable and mobilizable oil tank.
4) The whole machine is controlled by computer. The hydraulic
system adopts double proportional control. This machine has fault
automatic alarm, reliable operation, high automation and data
memory of 40 sets of moulds.
5) Three operation modes-“Manual”, “Semi Auto” , “Full Auto” , are
allowed to select.
| MP70D Double station blow molder with horizontal linear mould
shuttle |
| Length: | 3600mm |
|
| Width: | 2200mm |
| Height | 2360mm |
| | |
| Key Data | | MP70D |
| | mm |
| Linear mould stroke | A | 450 |
| Mould Width | B | 430 |
| Mould Length | C | 350 |
| Mould Thickness | D | 190 |
| Opening Stroke | E | 290 |
| | | | |
| Platen daylight | D+E | 480 | | |
| Clamping Force | | 75kN | | |
| Dry Cycle | | 7 sec. | | |
| Centre Distance | 2x2 fold | 160 | | |
| 2x3 fold | 120 | | |
| 2x4 fold | 100 | | |
| 2x6 fold | 60 | | |
| | | | |
| Extruder | | φ70 | φ75 | φ80 |
| Screw Speed | r/min | 0~65 | 0~65 | 0~65 |
| Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 |
| | | | |
| Energy Requirements | | | | |
| Extruder Inverter Power | kW | 18.5 | 22 | 30 |
| Extruder Moter Power | kW | 18.5 | 22 | 30 |
| Srew Heating Power | kW | 12.7 | 14.4 | 15.85 |
| Fan Power | kW | 0.14X2 | 0.14X2 | 0.14X2 |
| Oil pump Motor Power | kW | 9.5 | 9.5 | 9.5 |
| Total Power of Machine | kW | 49.14 | 54.34 | 63.79 |
| Air Requirement approx | m3/min | 1.2 | 1.2 | 1.2 |
| Air Working Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| | | | |
| Cooling Requirements | | | | |
| Consumption Cooling Water | L/min | 40 | 40 | 40 |
Standard Features:
Auto Lubrication
Water Cooled Modular Blow Pin
Hot Wire Cutting
Positioning Hole For Quick Mold Change
Adjustable Die head
Linear Transducer
FRL(Filter Regulator Lubricator) for Pneumatic
Proportional Hydraulic System fro better control
Swing and Adjustable Extrusion Platform
