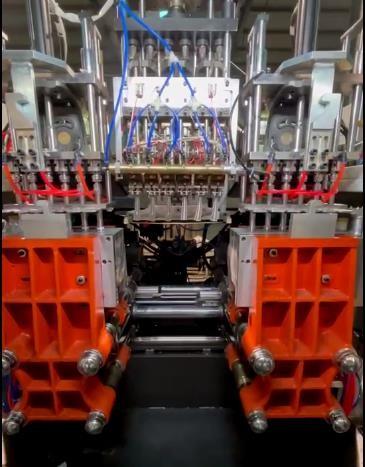

6 Heads Extrusion Blow Molding Machine For Yoghurt / Milk Bottle

Ask Lasest Price
Brand Name :	MEPER
Model Number :	MP70D-6
Certification :	CE/ISO9001:2008
Price :	Price negotiation
Payment Terms :	L/C, T/T
Supply Ability :	100 sets per month
Delivery Time :	25-35 work days

Add to Cart

Product Details
Company Profile

6 Heads Extrusion Blow Molding Machine For Yoghurt / Milk Bottle

6 heads Extrusion Blow Molding Machine For yoghurt or milk Bottle

Introduction:

MP70D-6 is specifically designed for making yoghurt or milk bottle. It is hydraulic driven with accrate eletrical control system. MP70D-6 has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 20 years of success in the market, MP70D-6 is updated to be one of the most reliable and popular model in the world.

CONTROL SYSTEM: HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY

All MEPER machines is equipped in standard with easy operational TECHMATION control system . MOOG 100 points Parison Control is also optional based on different requirements.

ENERGY SAVING: HIGH STANDARD OF ENERGY SAVING SYSTEM

MP70D-6 is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.

Standard Features:

Auto Lubrication

Water Cooled Modular Blow Pin

Hot Wire Cutting

Positioning Hole For Quick Mold Change

Adjustable Die head

Linear Transducer

FRL(Filter Regulator Lubricator) for Pneumatic

Proportional Hydraulic System fro better control

Swing and Adjustable Extrusion Platform

MP70D-6 Double station blow molder with horizontal linear mould shuttle
	Length:	3600mm
	Width:	2200mm
	Height	2360mm

Key Data		MP70D
		mm
Linear mould stroke	A	450
Mould Width	B	430
Mould Length	C	350
Mould Thickness	D	190
Opening Stroke	E	290

Platen daylight	D+E	480
Clamping Force		75kN
Dry Cycle		7 sec.
Centre Distance	2x2 fold	160
	2x3 fold	120
	2x4 fold	100
	2x6 fold	60

Extruder		φ70	φ75	φ80
Screw Speed	r/min	0~65	0~65	0~65
Screw Diameter	mm	70	75	80
Screw L/D Ratio	L/D	24	24	24

Energy Requirements
Extruder Inverter Power	kW	18.5	22	30
Extruder Moter Power	kW	18.5	22	30
Srew Heating Power	kW	12.7	14.4	15.85
Fan Power	kW	0.14X2	0.14X2	0.14X2
Oil pump Motor Power	kW	9.5	9.5	9.5
Total Power of Machine	kW	49.14	54.34	63.79
Air Requirement approx	m3/min	1.2	1.2	1.2
Air Working Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8

Cooling Requirements
Consumption Cooling Water	L/min	40	40	40
