MP70D-1 Plastic Bottle Blow Molding Machine For Agriculture Water Pot

Ask Lasest Price
Brand Name :	MEPER
Model Number :	MP70D-1
Certification :	CE/ISO9001:2008
Price :	Price negotiation
Payment Terms :	L/C, T/T
Supply Ability :	100 sets per month
Delivery Time :	25-35 work days

Add to Cart

Product Details
Company Profile

MP70D-1 Plastic Bottle Blow Molding Machine For Agriculture Water Pot

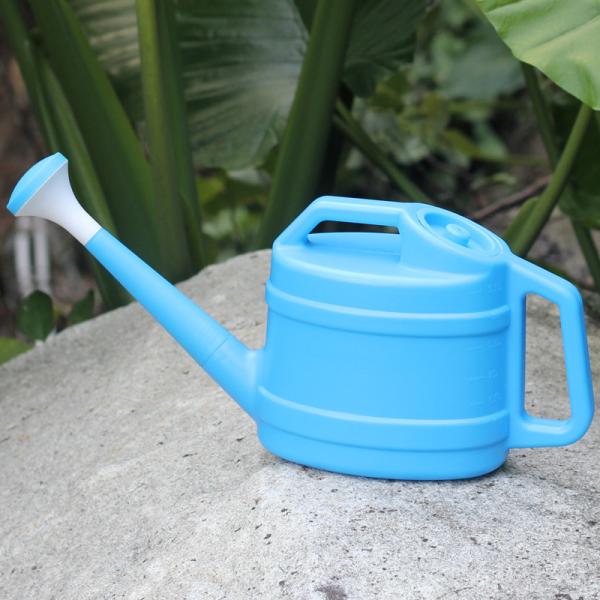

Plastic Bottle Blow Molding Machine MP70D-1 For Agriculture Water Pot

Introduction:

MP70D is specifically designed for making bottles from 50ml up to maximum 5L. It is hydraulic driven with accrate eletrical control system.

1) Left blow pin blowing: Air valve electromagnet T21 of left blow pin blowing is connected with power and blowing begins till to “left venting”.

2) Right blow pin venting: Air valve electromagnet T22 of right blow pin blowing is disconnected with power and venting begins.

3) Right quick mould opening: T1, T2 and T10 are connected with power. With high pressure, oil pump supplies much oil to system, up to bar chamber of right mould clamping oil cylinder V17. It pushes mould plate move apart quickly and quick mould opening achieves.

4) Left slow mould opening: When mould plate opening reaches stroke end, electron ruler gives signal. T1, T2 and T10 are connected with power. With low pressure, oil pump supplies little oil to system, up to bar chamber of right mould clamping oil cylinder V15. It pushes mould plate move apart slowly with low pressure. Electron ruler gives signal.

MP70D Double station blow molder with horizontal linear mould shuttle
	Length:	3600mm
	Width:	2200mm
	Height	2360mm

Key Data		MP70D
		mm
Linear mould stroke	A	450
Mould Width	B	430
Mould Length	C	350
Mould Thickness	D	190
Opening Stroke	E	290

Platen daylight	D+E	480
Clamping Force		75kN
Dry Cycle		7 sec.
Centre Distance	2x2 fold	160
	2x3 fold	120
	2x4 fold	100
	2x6 fold	60

Extruder		φ70	φ75	φ80
Screw Speed	r/min	0~65	0~65	0~65
Screw Diameter	mm	70	75	80
Screw L/D Ratio	L/D	24	24	24

Energy Requirements
Extruder Inverter Power	kW	18.5	22	30
Extruder Moter Power	kW	18.5	22	30
Srew Heating Power	kW	12.7	14.4	15.85
Fan Power	kW	0.14X2	0.14X2	0.14X2
Oil pump Motor Power	kW	9.5	9.5	9.5
Total Power of Machine	kW	49.14	54.34	63.79
Air Requirement approx	m3/min	1.2	1.2	1.2
Air Working Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8

Cooling Requirements
Consumption Cooling Water	L/min	40	40	40
